KCT6526H
5GHz 802.11ac RF PA
Introduction

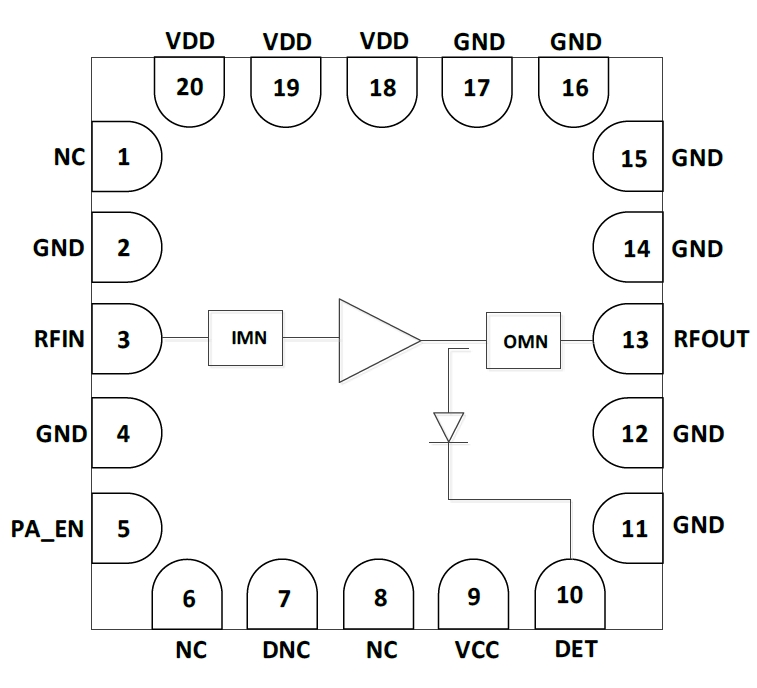

KCT6526H is a 5GHz Power Amplifier (PA) with superior output power, high-efficiency and high linearity. The device incorporates a power detector for close-loop monitoring of the output power, and a digital control for device on/off control.
KCT6526H has simple and low-voltage control logic, and requires minimal external components for system implementation.

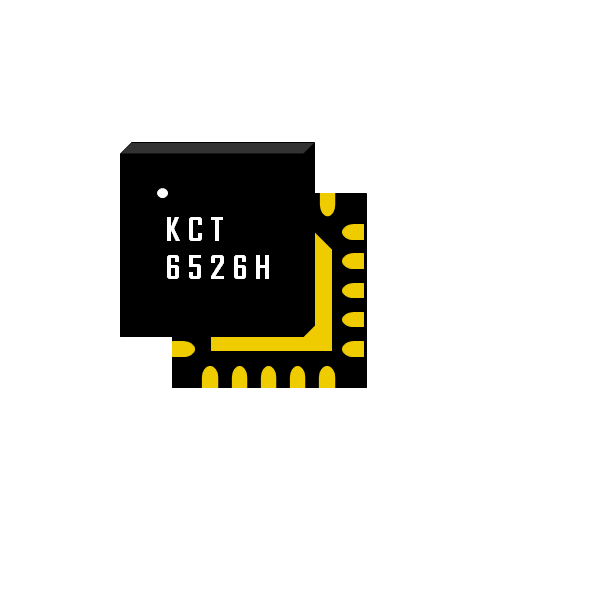

KCT6526H is assembled in a compact, low-profile 4 x 4 x 0.75mm 20-pin QFN package. It is the ideal PA solution for implementing 5GHz high power WLAN systems supporting multiple standards including 802.11b/g/n/ac.
Specifications
Integrated high performance 5GHz PA for WLAN 11a/n/ac
Fully-matched input and output
Integrated power detector
Transmit gain: 32.5dB at 5V
Output power:
+22.5dBm @ 1.8% DEVM, VHT80/MCS9, 5V
+24dBm @ 3% DEVM, HT20/MCS7, 5V
ESD protection circuitry on all PINs
Minimal external components required
Small package: QFN-20L 4mm x 4mm x 0.75mm (MSL3, 260℃ per JEDEC J-STD-020)
ROHS and REACH Compliant
