KCT8246QL
2.4GHz 802.11ax RF Front-End Module
Introduction

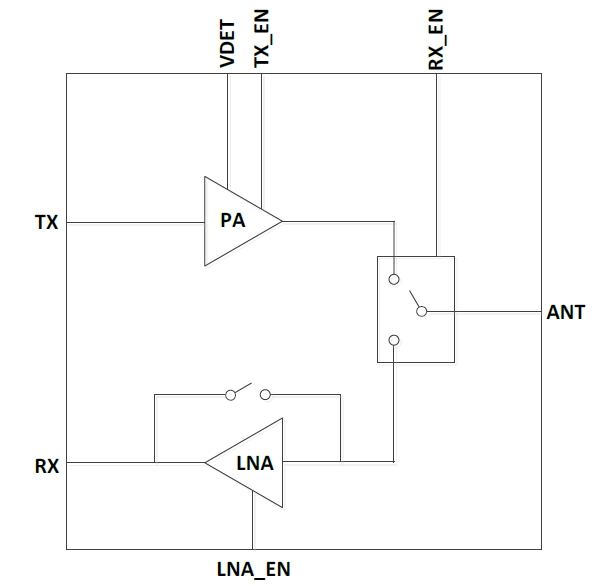

KCT8246QL is a fully integrated 802.11b/g/n/ac/ax WLAN RF front-end module (FEM) which incorporates key RF functionality. It is integrated with a high-efficiency power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and a single-pole, double-throw (SPDT) switch all in one device.
The PA power detector and a digital enable control are also integrated.

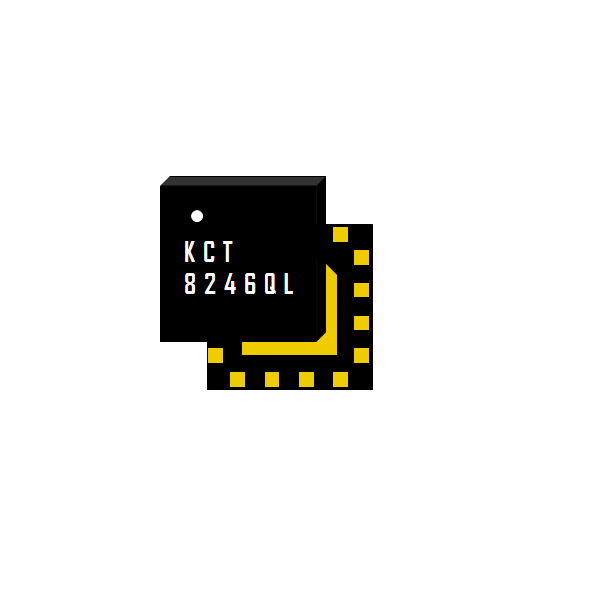

KCT8246QL is assembled in a compact, low-profile 3*3*0.55mm 16-pin QFN package. It is the perfect RF front-end solution for implementing 2.4GHz high-performance WLAN systems supporting multiple standards.
Specifications
Integrated high performance 2.4GHz PA, LNA with bypass, and T/R switch
Fully-matched input and output
Integrated power detector
Transmit gain: 29.5dB at 3.3V
Receive gain: 15dB at 3.3V
Noise Figure: 1.6dB at 3.3V
Output power:
+14dBm @ DEVM=-43dB, HE40/MCS11, 3.3V
+17dBm @ DEVM=-40dB, HE40/MCS11, 3.3V
+19.5dBm @ DEVM=-35dB, VHT40/MCS9, 3.3V
+20.5dBm @ DEVM=-30dB, HT20/MCS7, 3.3V
ESD protection circuitry on all PINs
Minimal external components required
Small package: QFN-16L, 3×3×0.55mm (MSL3, 260℃ per JEDEC J-STD-020)
RoHS and REACH Compliant
