KCT8101L
SUB 1GHz LP-WAN NB-IoT / ZigBee Front-end Module
Introduction

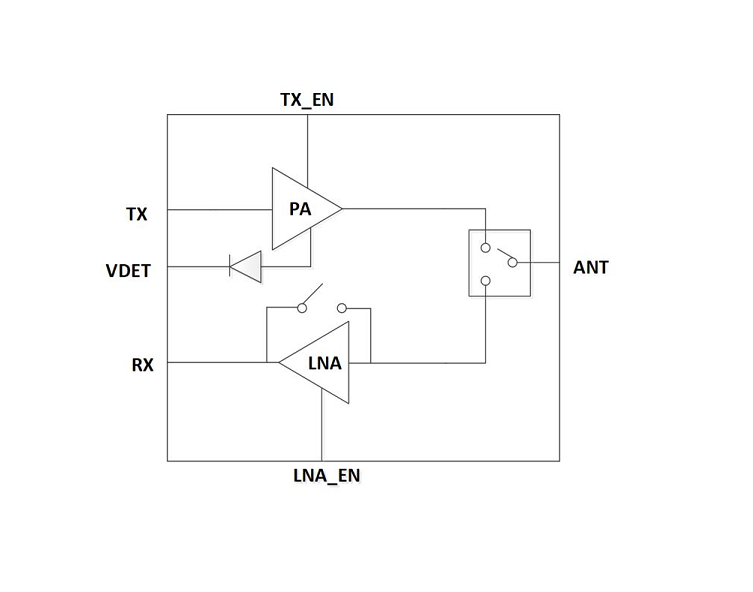

KCT8101L is a broadband, highly integrated, single-chip, single-die RF Front-End Integrated Circuit which incorporates key RF functionality needed for a TDD-mode RF Front-end operating in the 700/800/900MHz frequency bands. KCT8101L integrates a high-efficiency, and high-linearity power amplifier (PA), a low noise amplifier (LNA), Transmit and Receive switching circuitry and the associated matching network in a CMOS single-chip device.
KCT8101L has simple and low-voltage CMOS control logic, and requires minimal external components. It is designed for high output power, and consumes low current in receive mode.

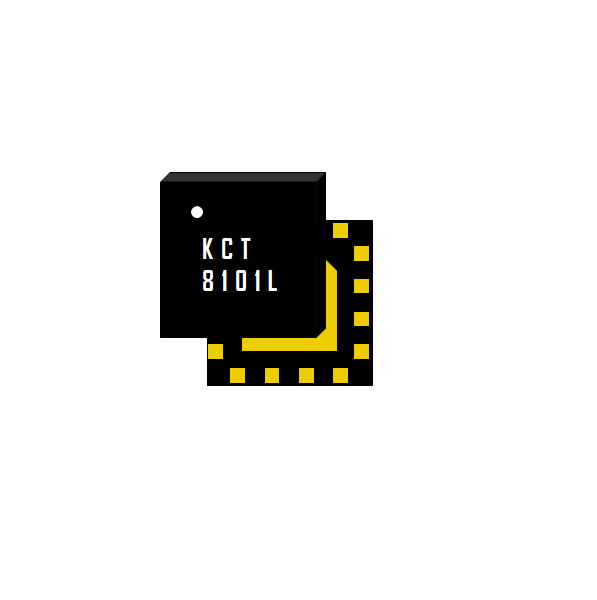

KCT8101L is assembled in a compact, low-profile 3x3x0.75mm 16-lead QFN package. KCT8101L is the ideal RF front-end solution for implementing sub-GHz from 780 to 960MHz supporting multiple standards including IEEE 802.15.4, 802.11p and 802.11ah.
Specifications
700/800/900MHz Single-chip, Single-die RF Front-end IC with 27.5dBm Output Power
Full on-chip 50Ω Input / Output matching and Decoupling Circuitry
Transmit gain: 28dB
Receive gain: 15dB
Transmit / Receive Switch Circuitry
Low Voltage CMOS Control Logic
Low Noise Figure for the Receive Channel
Very Low DC Power Consumption
ESD Protection Circuitry on All Ports
Minimal External Components Required
Small Package: QFN 16-pin 3×3×0.75mm, with Exposed Ground Pad (MSL3, 260℃per JEDEC J-STD-020)
RoHS and REACH Compliant
