KCT8522D
5GHz 802.11ac RF Front-End Module
产品介绍
KCT8522D is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac WLAN systems operating in the 5.15-5.85GHz range. KCT8522D integrates a high-efficiency high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, LO rejection, and harmonic filters all in one device.
KCT8522D has simple and low-voltage control logic, and requires minimal external components. Power detector is also integrated for accurately monitoring of output power from the PA.

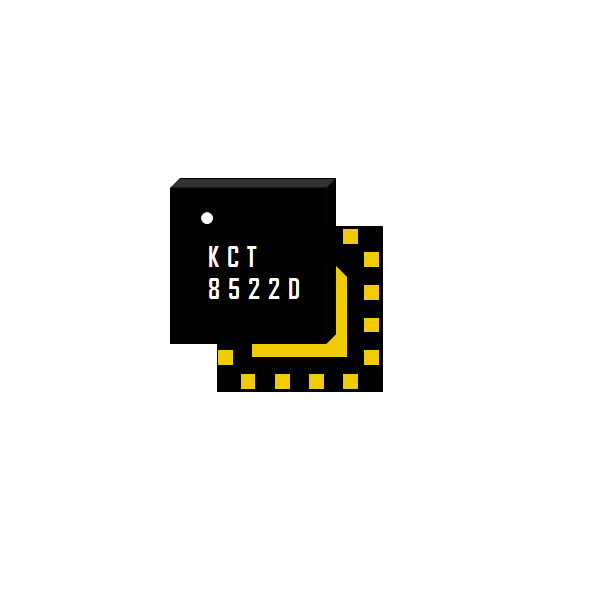

KCT8522D is assembled in a compact, low-profile 3x3x0.55mm 16-lead QFN package. KCT8522D is the ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac.
产品规格

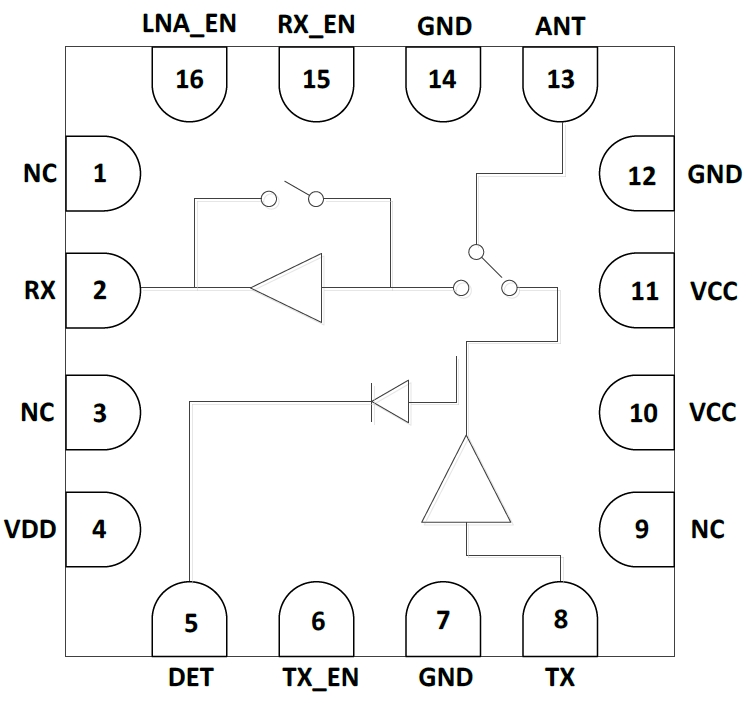

Integrated high performance 5GHz PA, LNA with bypass and T/R switch
Fully-matched input and output
Integrated power detector
Transmit gain: 30.5dB at 5V
Receive gain: 14dB at 5V
Output power:
+21.5dBm @1.8% DEVM, VHT80/MCS9, 5V
+22.5dBm @ 3% DEVM, HT20/MCS7, 5V
ESD protection circuitry on all PINs
Minimal external components required
Small package: QFN-16L 3mm x 3mm x 0.55mm (MSL3, 260℃ per JEDEC J-STD-020)
RoHS and REACH Compliant
