KCT8575HE-1
5GHz 802.11ax RF Front-End Module
产品介绍

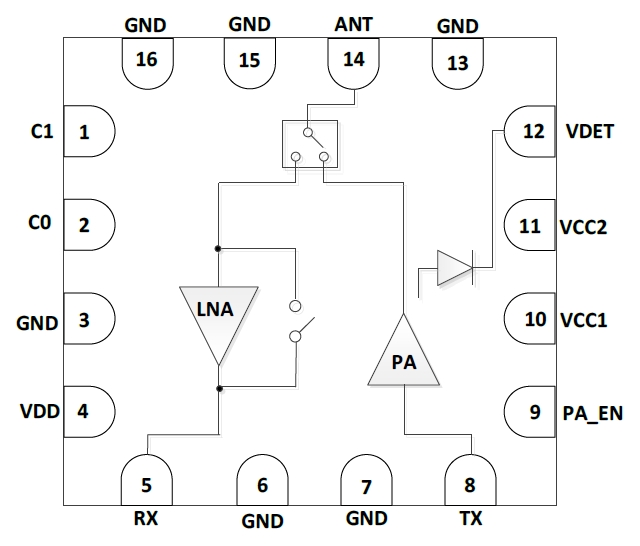

KCT8575HE-1 is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax WLAN systems operating in the 5.15-5.925GHz range. KCT8575HE-1 integrates a high-efficiency high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, and harmonic filters all in one device.
KCT8575HE-1 has simple and low-voltage control logic and requires minimal external components. A power detector is also integrated to accurately monitor the output power of the PA.

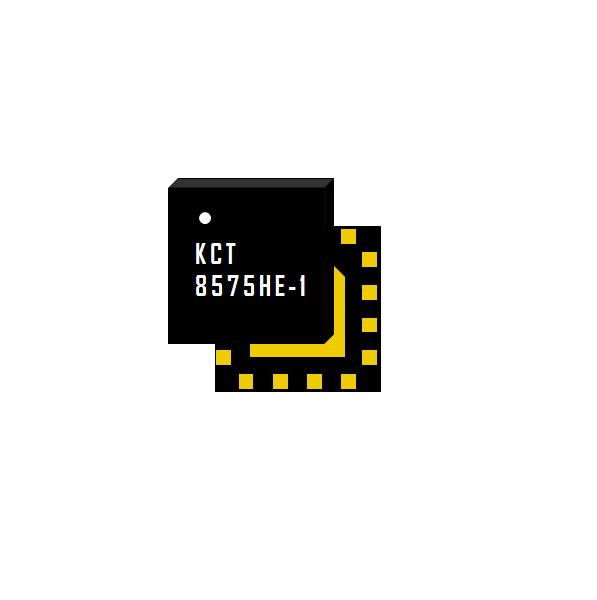

KCT8575HE-1 is assembled in a compact, low-profile 3x3x0.57mm 16-lead MIS package. KCT8575HE-1 is the ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac/ax.
产品规格
Integrated 802.11ax 5GHz PA, LNA with bypass and T/R switch
Fully-matched input and output
Integrated power detector
Transmit gain: 31.0dB at 5V
Receive gain: 17.5dB at 5V
Noise Figure: 1.7dB at 5V
Output power:
+19.5dBm @ -43dB DEVM, HE160/MCS11, 5V
+21.5dBm @ -40dB DEVM, HE160/MCS11, 5V
+23.0dBm @ -35dB DEVM, VHT80/MCS9, 5V
+24.0dBm @ -30dB DEVM, HT20/MCS7, 5V
ESD protection circuitry on all PINs
Minimal external components required
Small package: MIS-16L, 3mm x 3mm x 0.57mm (MSL3, 260℃ per JEDEC J-STD-020)
RoHS and REACH Compliant
